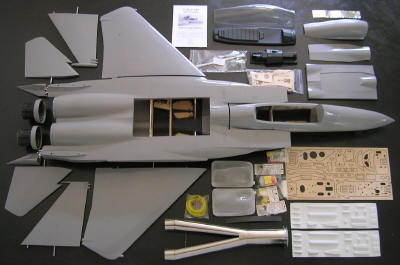

New F-15 ARF

Epoxy fibreglass fuselage parts (gray gelcoat primer finish):

• main fuselage, carbon reinforced, all load bearing formers, wing and fin receptacles, anti rotation tubes and stab pivots factory installed

• fuselage nose section, carbon reinforced, formers factory installed

• large access hatch, carbon reinforced

• dorsal airbrake

• canopy frame

• left hand tail fairing

• right hand tail fairing

• 2 ea. scale featherless exhaust nozzles (black primer finish)

Epoxy fibreglass flying surfaces (gray gelcoat primer finish):

• left wing with spar and anti rotation pins installed

• right wing with spar and anti rotation pins installed

• left fin with spar and anti rotation pin installed (wide tip pod)

• right fin with spar and anti rotation pin installed (narrow tip pod)

• 2 ea. stabs with spars installed and tapped M4

Tailpipe parts:

• stainless steel bifurcated tailpipe with aluminium bellmouth

• aluminium heat reflective tape 50 mm wide (fuselage protection)

Vacformed parts:

• clear canopy

• cockpitdeck (black ABS)

• instrument glare shield, seat and HUD mouldings (black ABS)

• 2 ea. scale details sheets (white ABS)

CNC cut plywood & balsa parts:

• complete set of CNC cut plywood & balsa parts to complement the factory installed formers

Fuel system hardware:

• pair of epoxy glass conformal fuel cells, capacity 1650 ml each

• 120 ml (4 oz) hopper tank

• fuel fittings hardware

• heavy duty clunks

• fuel tubing

• T-connectors

• fuel line clips

Other hardware:

• stab control rods (ready to install)

• hatch latches

• nose wheel steering hardware

• complete set of specialised screws, nuts and bolts
